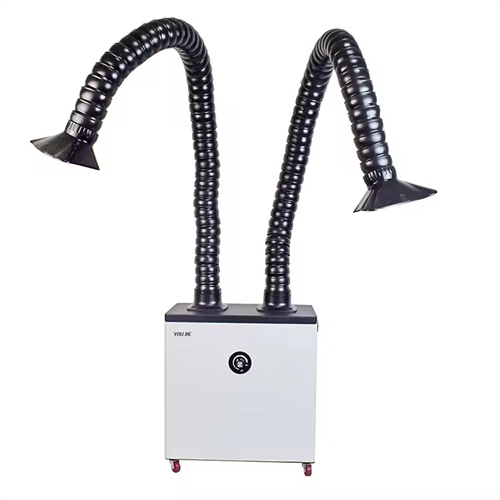

soldering fume extractor

soldering fume extractor

soldering fume extractor

  • Model: F802

System Includes


Fume extraction systems are machines that use fans to extract dust, toxic fumes and other harmful particles into a contained filtration system. Fume extractors protect people, equipment and the wider environment from these toxic fumes.


Technical Features

  • Model: Heatex-F802
  • Voltage: 110V/220V
  • Power: 200W
  • Ducts: 2
  • Systematic Flow: 2 x 150m³/h
  • Air Velocity: 2 x 11m/s
  • Air Inlet Interface: φ75mm * 2 Flange
  • Input Voltage: AC 220V/110V
  • Maximum Power: 180W
  • Filtering Efficiency: 0.3μm  99.97%
  • Noise: <50DB
  • Length of Duct: 1.4m
  • Dimensions of Main unit: L425 X W250 X H410
  • Weight (Excluding the Duct): 15.5Kgs.
  • Body of the Filters: ESD Safe
