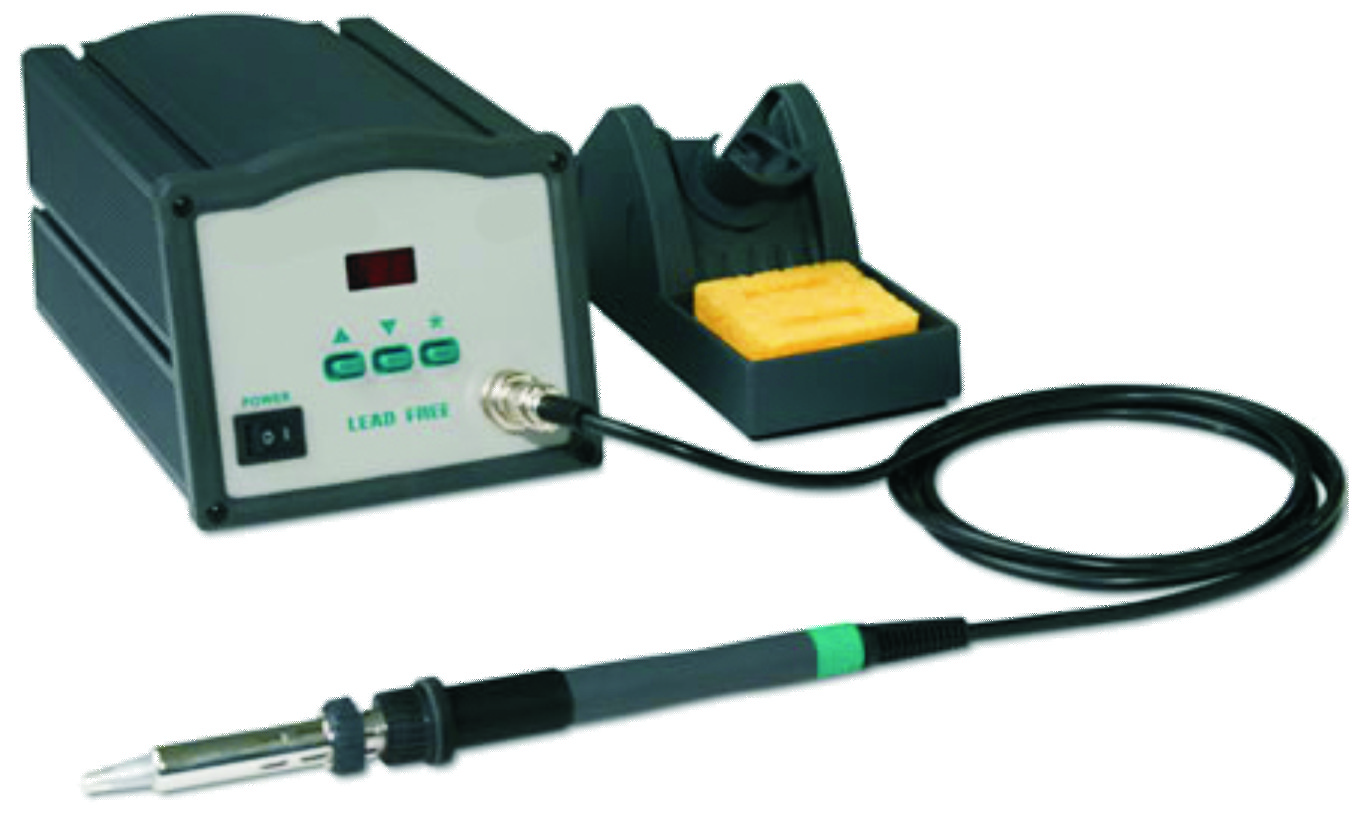

System Includes

• Microprocessor based power control.
• Soldering iron
• Stand with cleaning sponge
• Cellulose tip cleaning sponge

Features

1. High frequency current heating, fast heating and rapid thermal recovery.SPK150Asoldering station is suitable for lead free soldering.

2. Micro computer control. Set temperature only by pressing keys and calibrate it digitally. Auto sleeping and auto shut-off functions are available.

3. Large power design (150 watt), max 8mm tip available.

4. Temperature locked by password to ensure soldering process.

5. ESD safe design, various types of tips available.

Specifications

Max power consumption  : 150W

Input voltage                  : 110V/220V

Output voltage                : 36V AC 400K Hz

Temperature range          : 50℃-600℃

Temperature stability       : ±2℃(stationary air, no load)

Tip to ground potential     : < 2mV

Tip to ground resistance   : < 2Ω

Dimensions                     : 200(L)*130(W)*100(H)mm

 Weight                           : About 2.7kg
