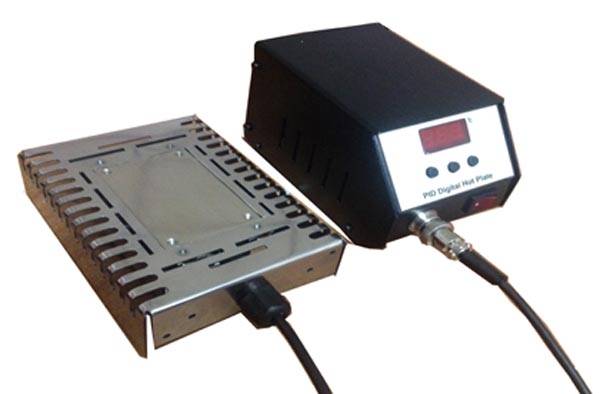

PREHEATING HOT PLATE 100 X 100MM


PREHEATING HOT PLATE 100 X 100MM

PREHEATING HOT PLATE 100 X 100MM

  • Model: HP-180

System Includes

  • HEATEX- HP100 / 110 V - 200 Watt temperature controlled preheat plate
  • Accessory soldering stations and HEATEX rework units
  • For preheating of electronic components and single sided PC board assemblies especially RF Components
  • Compatible with lead free solders
  • Precision temperature control / 150° F - 600° F (50° C - 400° C)
  • Heated surface - 90 W: Heating plate -  100mm x 100 mm
  • ESD safe

Features

HEATEX-HP-100 is a 100W/110V pre-heating plate particularly suited for use with flat silicon cells, as well as, ceramic and glass boards. Using the HEATEX-HP-100 allows the temperature of the board's substrate material to be raised to the correct working temperature, ensuring perfect soldering operations without the risk of damage to the board from thermal shock.

Specifications

  • MATERIAL - HEATEX- HP 100
  • Wattage -200 W
  • Temperature Range -150°F - 600°F – 50 – 400 Deg.c
  • Voltage Output - 110V
  • Style Type-  Preheat Plate
