System Includes

• Microprocessor based power control.
• Soldering iron
• Stand with cleaning sponge
• Cellulose tip cleaning sponge
• any three deffrent sizes ( 2.4, 3.2, 4.6D )

Features

• Temp Control for accurate and precise temperature
• Bright display for clear visibility
• Auto tune systems control Closed loop temperature control
• Soft On/Off Power switch Modular and compact design
• ESD SAFE by design
• Sleep mode by auto off ideal time ( optional )
• Programmable Temperature Locking
• Quality tips for long life Easy to handle.  Different Sized Bits are available.
• Monitor Bit temperature intelligently with perfect temperature offset to ensure soldering Quality.

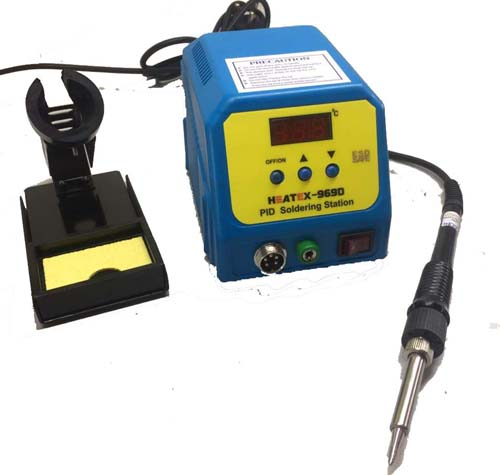

• The HEATEX- 969D is an effective solution for LEAD FREE Soldering.
• The unit is digitally calibrated through advanced software. Burn Proof silicon cable thermal resistance up to 600 Deg.C

Specifications

• • Input Voltage : 230VAC,50Hz
  • Soldering Iron: 24VAC, 60W/75W/95W/120W different wattage available
  • Temp Range : 180- 480°C
  • Temperature control accuracy +/- 1 Deg
  • Tip Leakage Current : < 2 mA
  • Tip to Ground Resistance : < 2 Ohms
  • Tip to Ground Leakage Voltage : < 2 mV
  • Tip Leakage Current : < 2 mA
  • Tip to Ground Resistance : < 2 Ohms
  • Tip to Ground Leakage Voltage : < 2 mV
