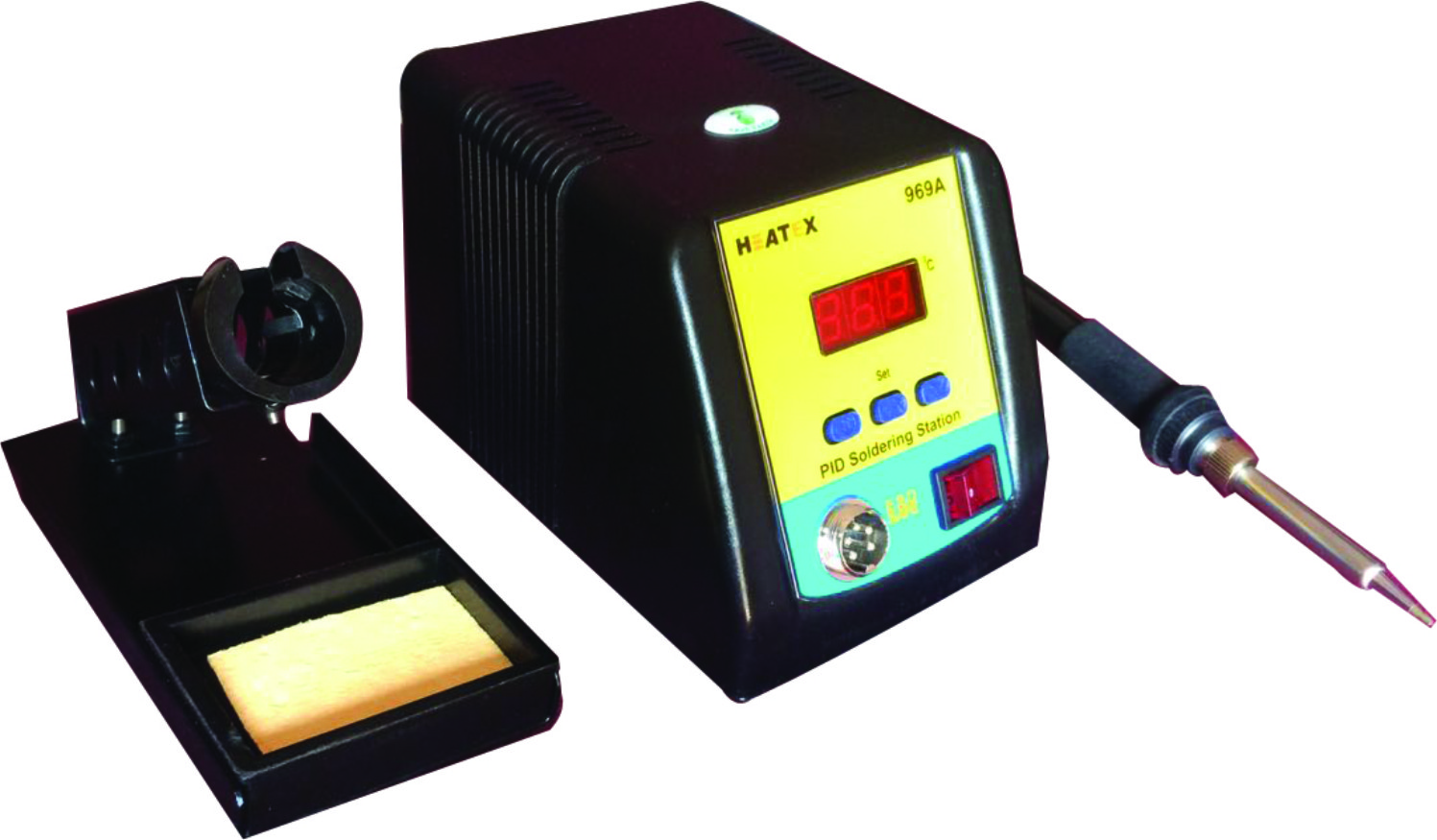

PID Control Lead Free Soldering Station Model: 969A
System Includes
- Microprocessor based power control.
- Soldering iron
- Stand with cleaning sponge
- Cellulose tip cleaning sponge
Features
- Temp Control for accurate and precise temperature
- Bright display for clear visibility
- Auto tune systems control Closed loop temperature control
- Soft On/Off Power switch Modular and compact design
- ESD SAFE by design
- Quality tips for long life Easy to handle. Different Sized Bits are available.
- Monitor Bit temperature intelligently with perfect temperature offset to ensure soldering Quality.
- The HEATEX- 969A is an effective solution for LEAD FREE Soldering.
- The unit is digitally calibrated through advanced software. Burn Proof silicon cable thermal resistance up to 600 Deg.C
Specifications
- Input Voltage : 230VAC,50Hz
- Soldering Iron: 24VAC,/60W/90W
- Temp Range : 180- 480°C
- Temperature control accuracy +/- 1 Deg
- Tip Leakage Current : < 2 mA
- Tip to Ground Resistance : < 2 Ohms
- Tip to Ground Leakage Voltage : < 2 mV
