System Includes

• Temp Control for accurate and precise temperature
• Bright display for clear visibility
• Auto tune systems control Closed loop temperature control
• Soft On/Off Power switch Modular and compact design
• ESD SAFE by design
• Quality tips for long life Easy to handle.  Different Sized Bits are available.
• Monitor Bit temperature intelligently with perfect temperature offset to ensure soldering Quality.

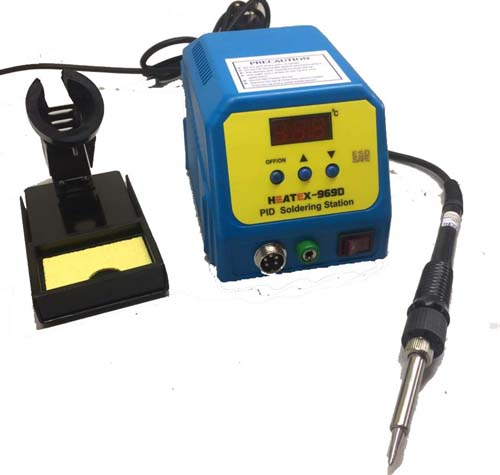

• The HEATEX- 969D is an effective solution for LEAD FREE Soldering.
• The unit is digitally calibrated through advanced software. Burn Proof silicon cable thermal resistance up to 600 Deg.C

Features

• ESD SAFE Microprocessor based power control unit
• Soldering iron
• Stand with cleaning sponge
• operating manual

Specifications

• Input Voltage : 230VAC,50Hz
• Soldering Iron: 24VAC,/75W/90/W/120W
• Temp Range : 180- 480°C
• Temperature control accuracy +/- 1 Deg
• Tip Leakage Current : < 2 mA
• Tip to Ground Resistance : < 2 Ohms
• Tip to Ground Leakage Voltage : < 2 mV
