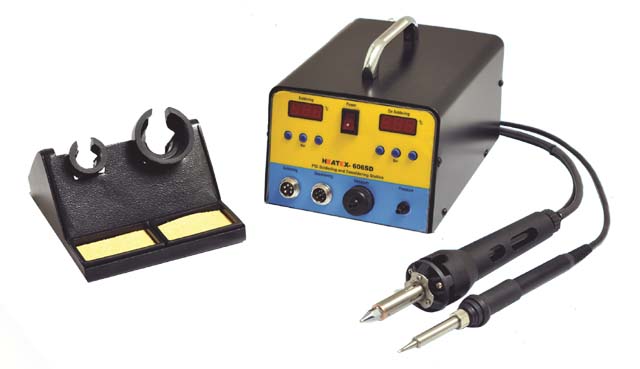

Digital PTH Soldering and Desoldering Station

Digital PTH Soldering and Desoldering Station

Digital PTH Soldering and Desoldering Station

  • Model: 606SD

System Includes

  • Microprocessor based power control unit with built in vacuum pump
  • De-soldering iron & Soldering iron with 1.2mm tips
  • Stand with cleaning sponge & Cellulose tip cleaning sponge
  • Power cord & Tool box: Fiber filters 20 Nos,solder collector glass tube 1No, Tip replace Spanner 1No,Cleaning
  • spring 2 Nos, Silicon washers 2 sets.
  • User manual for


Two Channel simultaneous operation Soldering & Desoldering with two independent outputs

Temperature Control for accurate and precise temperature

Digital Dispaly for clear visibility with 7 segment display

Soft On/Off Power switch Modular and compact design

ESD SAFE by design ,Sleep mode by auto off ideal time Programmable Temperature Locking

Auto tune systems control

Closed loop temperature control

Soft On/Off Power switch

Modular and compact design

Quality nozzles for long life

High capacity through hole(PTH) De-soldering iron with finger activated vacuum

Easy to handle. Different Sized Bits & Nozzles are available.

Monitor Bit & Nozzle temperature intelligently with perfect temperature offset to ensure soldering Quality.

Heatex – 606SD Soldering Desolderng ceremic heater provides high insulation and reduces the handle-to-tip distance for faster soldering with a minimum of motion. The special alloy heating element is printed in the alumina ceramic insulating layer, then sintered to the ceramic main body, completely sealing the heating element from the air, protecting it from oxidation.

A more advanced version of this uses a microprocessor to monitor the Temperature of the tip via thermocouple and adjusts the power to the heating element accordingly. The unit is digitally calibrated through advanced software.

Burn Proof silicon cable thermal resistance up to 600 Deg.C



  • De-soldering : 24VAC,80W
  • Soldering : 24VAC,80W
  • Desold pump :24VDC, 80W
  • Vacuum Pressure :12000 rpm, 500 to 700mm/hg
  • Temp Range : 50 to 480°C  Temperature control accuracy +/- 5°C
  • Tip Leakage Current : < 2 mA  Temperature control Stability +/- 1°C
  • Tip to Ground Resistance : < 2 Ohms
  • Tip to Ground Leakage Voltage : < 2 mV
  • No. of channels : 2
  • Power consumption : 150 W to 300 W
  • Display: LED
  • Operating temperature : -50℃~480℃ -
  • ESD Safe By design
