System Includes

Package List • Heatex-6200 Host-1 set.

• Operational Manual-1 set. • Power Cord-1Pc.

• 3.5mm of grounding receptacle-1Pc. • Ht-Y130 handle set-1Pc.

• S01 Iron Stand-1Pc.

• Ht-N100 tweezer handle: 1Pc.

• S02 Iron stand-1Pc.

• Additional Accessories as per buyer’s choice. Applicable

• Institutes/Enterprises.

• Education and practice.

• Maintenance • Hobby.

• CE Certified.

• ROHS marked.

• ESD Safe

• Warranty- 1Year against manufacturing defects.

Features

• Voltage AC 220V/230V/240V, 50/60Hz
• Optional Total Power 255 W
• Display LCD Main Unit
• Soldering Station Electronic Tweezers Handle HT-Y-130 HT-N-100
• Temperature Range 50°C to 450°C 50?C~450?C
• Wattage 50W 80W Temperature Accuracy ±9? ±9? T
• emperature Stability ±2(in still air, no load) ±2(in still air, no load)
• Soldering Tip/ Heater Integrated with Tip Soldering Tip T130-1.0I T100-0.5I Soldering Stand S01, S02 Inner Box 45.8 x 37 x 22.5cm Net Weight 4.97Kgs. Gross Weight 7.61Kgs.

Specifications

? Easy temperature setting Short press “MENU” to select setting channel, then press “ UP”/“DOWN” key to adjust the temperature

. ? Quick call short-cut temperature Short press “MENU” to select setting channel, then short press key 1/2/3 to quickly call the set temperature. Long press key 1/3 to turn on/off channel 1/2.

? User-friendly menu enables system setting easier Support ?/?, Password, Keypad tone, Temp offset, Standby temperature, Standby/Shutdown delay, Shortcut/Fix temp, Ceiling/Lower limit temperature setting.

? PC Software Control System

? Software interface included 4 functions modules • Communication module: display product model, communication mode, net address, communication port, etc. • Parameter setting module display product parameter setting and the real-time parameter information. • Info tip module including errors, important operating hints, etc • Real-time temperature curve display module: display real-time temperature curve of each channel and curve data of saved temperature.

Product Description

•  Compatible with various type of soldering tools, one station serves several purposes
•  Single channel power max support to 150W, whole machine maximum power is255W.
•  Two output channels can work at the same time.
•  Big silicon buttons operate comfortable and reliable.
• All kinds of parameter data and information in the form of graphics display with its large LCD screen.
•  Can automatically recognize the soldering tools and upload corresponding parameters.
•  Provide 3 sets short cut temperature to simplify operations.
• ?Parameters can be set and controlled by computer.



Bright Technologies is a reputed manufacturer and exporter of Soldering Stations in India, providing high-quality electronic assembly solutions. Our soldering systems are engineered for precision, durability, and professional performance. With advanced technology and robust design, we cater to electronics industries across the country. We ensure reliable delivery and support for customers in all major industrial hubs of India.

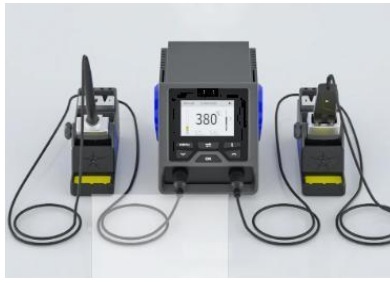

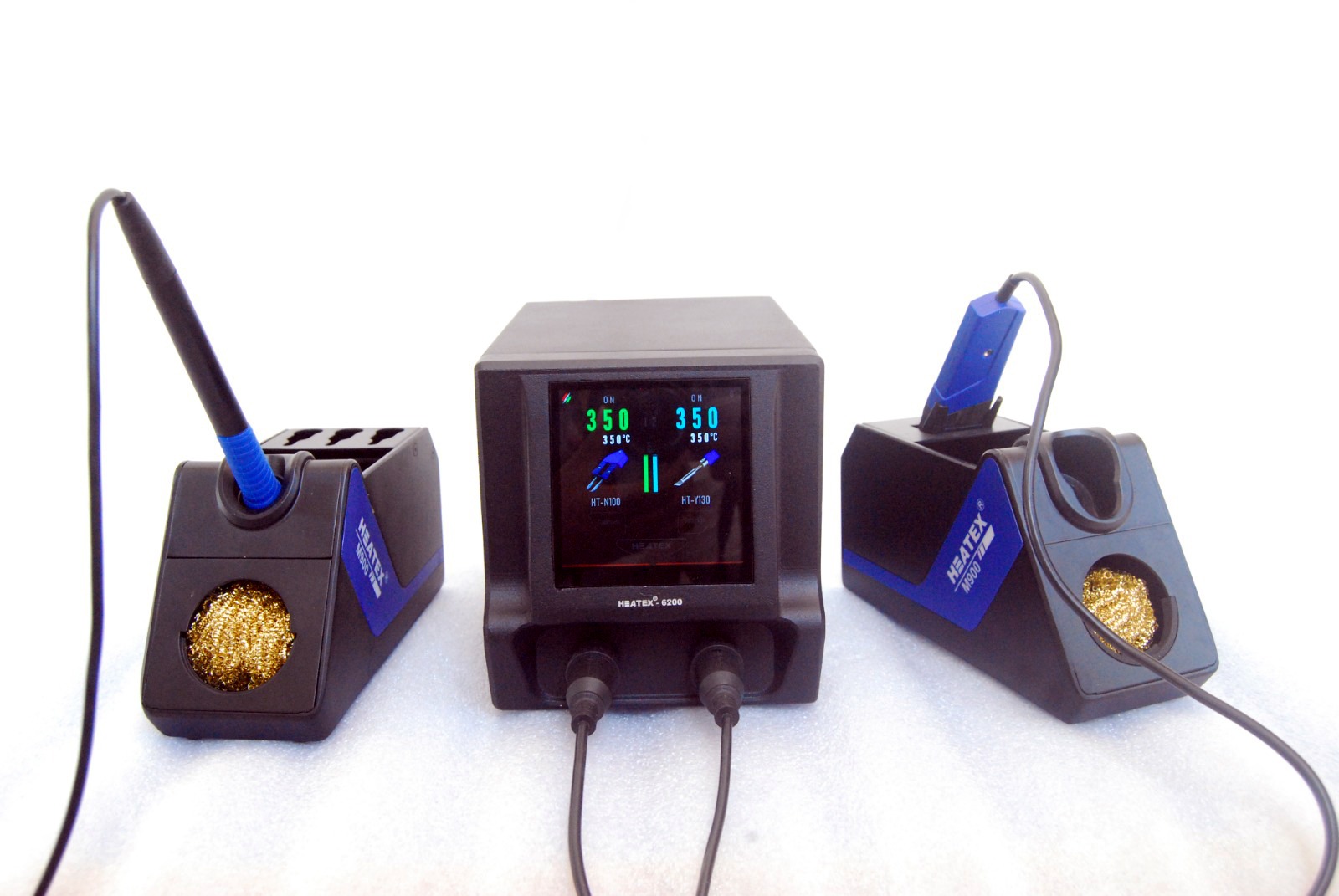

Soldering Station

The Soldering Station by Bright Technologies is designed for efficient and precise soldering of electronic components. It offers stable temperature control, ergonomic design, and safe operation, making it ideal for manufacturing units, repair centers, and training labs.

Our Soldering Station Includes

•    Temperature-controlled soldering iron

•    Adjustable heating element

•    Ergonomic soldering handle

•    Stable and durable workstation base

•    Easy-to-use digital control panel



Soldering Station Across India

Bright Technologies supplies Soldering Stations across India, serving manufacturers, electronic assemblers, and exporters with high-quality soldering solutions. Our nationwide distribution ensures timely delivery, technical support, and reliable after-sales service.
