System Includes

Features

Wrist Straps are the first line of defence against electrostatic charges build up on the human body. They are designed to carry away this change as soon as it is generated. At the same time the strap must remain electrically safe for the user. Thus, it is important to test every strap regularly.

In order to protect sensitive electronic components the maximum strap resistance should not be more than 10 meg ohms. On the other hand, the path to ground should have atleast 750 kiloohm resistance, as protection to the wearer from dangerous volta ges and levels of current flow.

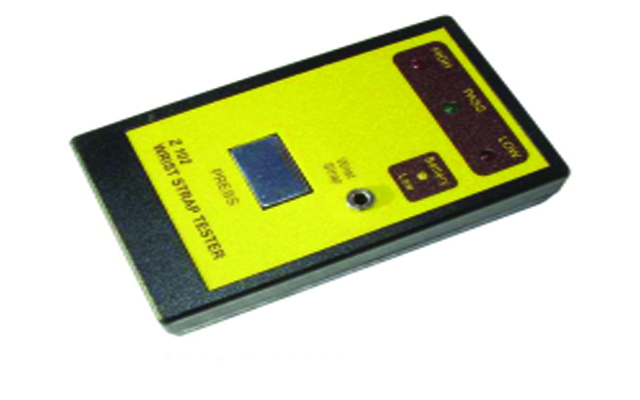

The wrist strap tester checks these parameters under actual operating conditions with the strap on the wrist. It clearly indicates whether or not the resistance of the strap system including the wearer falls within acceptable limits.

Specifications

Pass Band : 0.75 Megohms to 10 Megohms.

Indications : Pass - Green LED

 Fail - RED LED

 Audible Alarm for Fail mode.

Actuation : By gently pressing metal sensor plate.

Accuracy : +10%.

Power supply : 9 V volts battery

Dimensions : 125 x 75 x 29 mm

Weight : 200 gms (with battery)

Calibration : Recommended every 12 months.

Traceability : To national standards

Warranty : One year.
