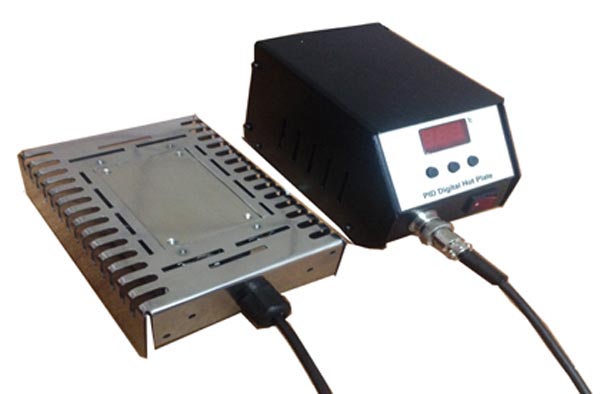

PREHEATING HOT PLATE 80 X 50MM


PREHEATING HOT PLATE 80 X 50MM

PREHEATING HOT PLATE 80 X 50MM

  • Model: HP-100

System Includes

  •  HEATEX- HP100 / 24 V - 100 Watt temperature controlled preheat plate
  • Accessory soldering stations and HEATEX rework units
  • For preheating of electronic components and single sided PC board assemblies especially RF Components
  • Compatible with lead free solders
  • Precision temperature control / 150° F - 400° F (50° C - 250° C)
  • Heated surface - 80 W: Heating plate - 3.15" x 1.97" / 80 mm x 50 mm
  • ESD safe

Features

HEATEX-HP-100 is a 100W/24V pre-heating plate particularly suited for use with flat silicon cells, as well as, ceramic and glass boards. Using the HEATEX-HP-100 allows the temperature of the board's substrate material to be raised to the correct working temperature, ensuring perfect soldering operations without the risk of damage to the board from thermal shock.

Specifications

  • MATERIAL - HEATEX- HP 100
  • Wattage -90 W
  • Temperature Range -150°F - 450°F – 50 – 250 Deg.c
  • Voltage Output - 24 V
  • Style Type-  Preheat Plate
