DIGITAL MULTIMETER

System Includes

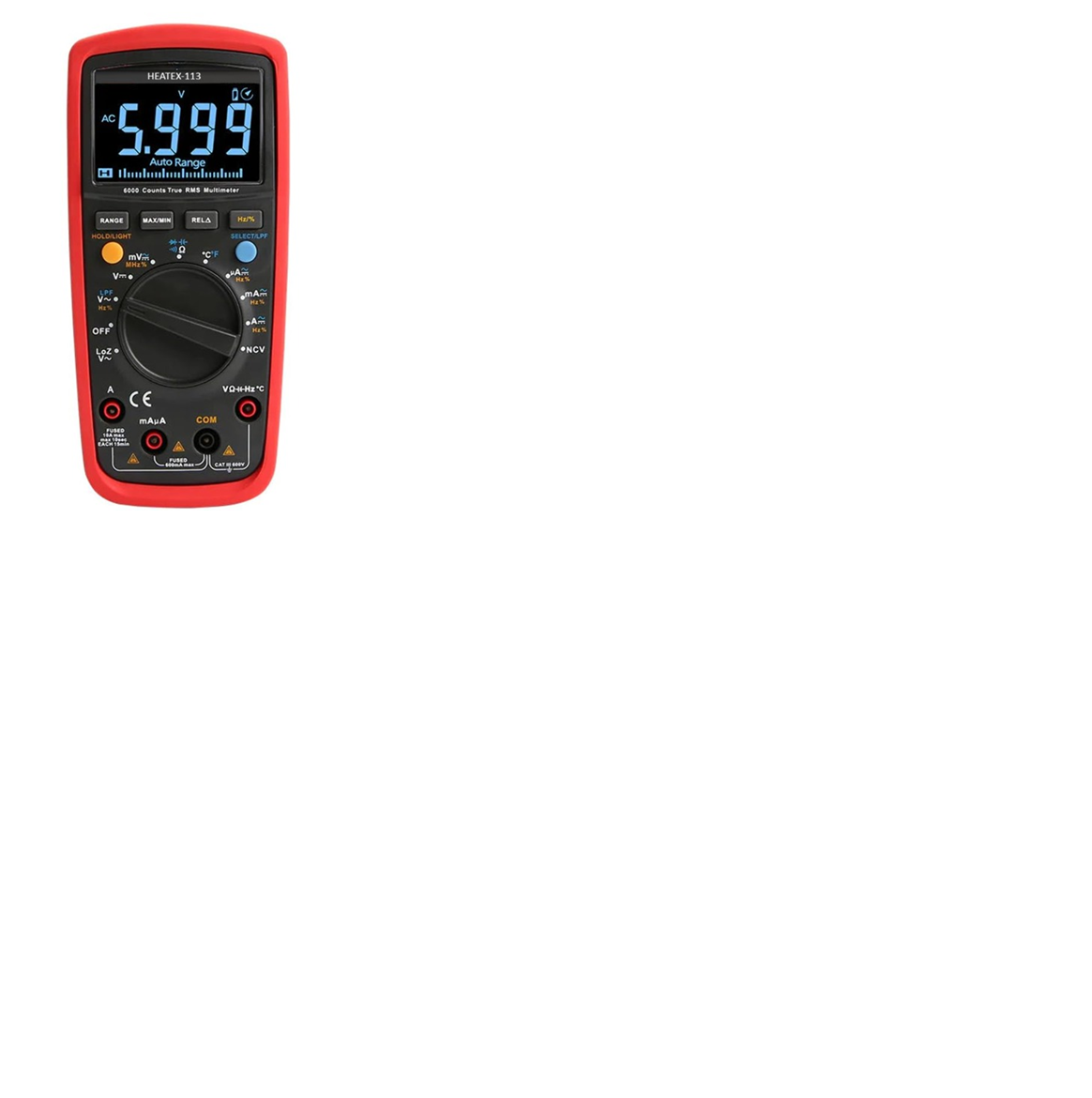

The specifications detailed in this brochure correspond to the HEATEX-113 Handheld Digital Multimeter, offering ±0.5% basic DC accuracy, resistance measurement up to 60 MΩ, CAT III 600 V safety rating, and standard 2 × AAA battery operation as summarized above.

Features

• High-accuracy measurements with ±0.5% basic DC accuracy
• Wide AC and DC voltage measurement capability (up to 600 V)
• Measures resistance up to 60 MΩ
• Capacitance measurement up to 1000 μF
• Frequency measurement up to 100 kHz
• Built-in diode testing function
• Audible continuity buzzer for fast circuit verification
• CAT III 600 V safety rating for enhanced operator protection
• Compact, lightweight, and ergonomic handheld design
• Easy battery replacement through dedicated battery compartment
• Battery-powered operation using standard 2 × AAA batteries

Technical Specifications

• Product Type                     Handheld Digital Multimeter AC Voltage Range 600 mV to 600 V
• DC Voltage Range            6 V to 600 V Resistance Range 400 Ω to 60 MΩ
• Capacitance Range          50 nF to 1000 μF Frequency Range 50 Hz to 100 kHz
• Basic DC Accuracy            ±0.5% Safety Category CAT III 600 V
• Diode Test                          Supported Continuity Test Audible buzzer indication
• Battery Type                      2 × AAA batteries Battery Access Easy-access battery compartment for quick replacement
• Operating Temperature   0°C to 40°C
