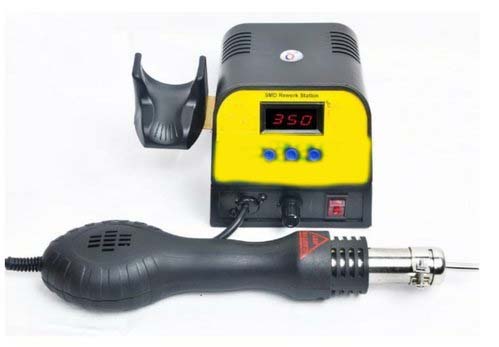

System Includes

·         Power base with built in air pump & PID based power control channel with digital display

·         Hot air gun for non contact soldering and de-soldering of SMD’s with single hole nozzle

·         Side attachment for Hot air gun stand

Features

·        PID Control for accurate and precise temperature

·        Hot air gun for safe and-contact SMT component removal or replacement.

·        Self contained diaphragm Air pump

·        Comfortable portable handheld and the Digital LED display.

·        Microcomputer control, warming-up quickly.

·        Adjust the air flow and temperature control.

·        When the temperature is less than 70°c, can stop rotation automatically.

·        Intelligent system that could alarm, Fault detection automatically.

·        Safe to solder QFP, PLCC, BGA and other temperature-sensitive components

Specifications

·        Working voltage: AC: 220 V plus or minus 10% frequency 50 Hz

·        Output power: 350 W plus or minus 10%

·        Temperature range: 100 c--450 c;

·        Air flow: 120 L/min (maximum)

·        Temperature stability: ± 2 c (static)
