System Includes

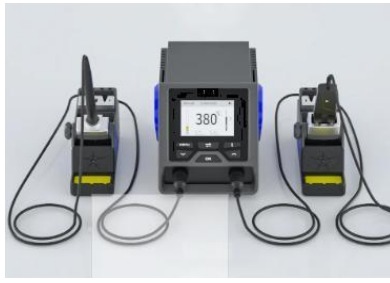

Package List • Heatex-6200 Host-1 set.

• Operational Manual-1 set. • Power Cord-1Pc.

• 3.5mm of grounding receptacle-1Pc. • Ht-Y130 handle set-1Pc.

• S01 Iron Stand-1Pc.

• Ht-N100 tweezer handle: 1Pc.

• S02 Iron stand-1Pc.

• Additional Accessories as per buyer’s choice. Applicable

• Institutes/Enterprises.

• Education and practice.

• Maintenance • Hobby.

• CE Certified.

• ROHS marked.

• ESD Safe

• Warranty- 1Year against manufacturing defects.

Features

• Voltage AC 220V/230V/240V, 50/60Hz
• Optional Total Power 255 W
• Display LCD Main Unit
• Soldering Station Electronic Tweezers Handle HT-Y-130 HT-N-100
• Temperature Range 50°C to 450°C 50?C~450?C
• Wattage 50W 80W Temperature Accuracy ±9? ±9? T
• emperature Stability ±2(in still air, no load) ±2(in still air, no load)
• Soldering Tip/ Heater Integrated with Tip Soldering Tip T130-1.0I T100-0.5I Soldering Stand S01, S02 Inner Box 45.8 x 37 x 22.5cm Net Weight 4.97Kgs. Gross Weight 7.61Kgs.

Specifications

? Easy temperature setting Short press “MENU” to select setting channel, then press “ UP”/“DOWN” key to adjust the temperature

. ? Quick call short-cut temperature Short press “MENU” to select setting channel, then short press key 1/2/3 to quickly call the set temperature. Long press key 1/3 to turn on/off channel 1/2.

? User-friendly menu enables system setting easier Support ?/?, Password, Keypad tone, Temp offset, Standby temperature, Standby/Shutdown delay, Shortcut/Fix temp, Ceiling/Lower limit temperature setting.

? PC Software Control System

? Software interface included 4 functions modules • Communication module: display product model, communication mode, net address, communication port, etc. • Parameter setting module display product parameter setting and the real-time parameter information. • Info tip module including errors, important operating hints, etc • Real-time temperature curve display module: display real-time temperature curve of each channel and curve data of saved temperature.
